Unpowered Asset Gateway

Unpowered Asset Gateway

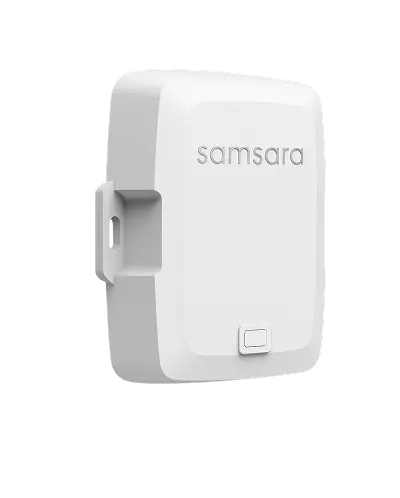

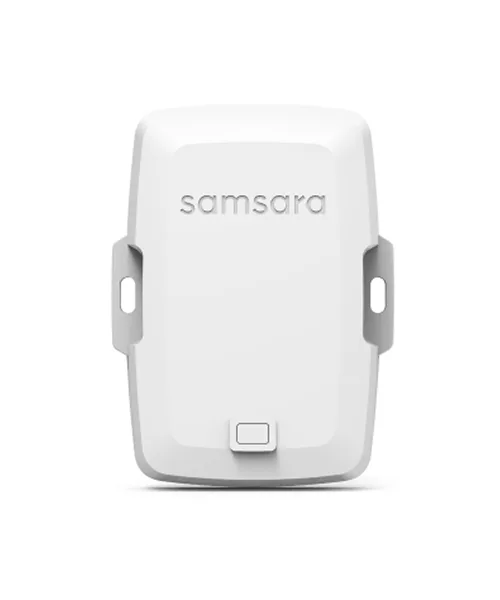

The Unpowered Asset Gateway is a wallet-sized tracker ideal for monitoring assets like intermodal containers, construction equipment, dumpsters, light towers and other mobile assets etc. It features customizable GPS check-ins, user-replaceable AA batteries that last 3-5 years, and a waterproof and ruggedized enclosure. This product enables increased asset visibility, theft recovery and optimized pool inventory management. It is part of Samsara’s Connected Operations Cloud, enabling you to capture data that helps you run your operations more efficiently, safely, and sustainably.

Affordable asset tracking

The AG51 is an affordable, GPS location tracking device designed to protect mobile assets. Whether equipment is left at public construction sites or expensive equipment is leased out, the AG51provides security and peace of mind that assets are safe and where they should be.

Detect & recover lost or stolen assets

Easy-to-use geofence alerts enable users to instantly detect and respond to theft and unauthorized use. Alerts are sent via email or SMS when assets move outside of designated areas, such as a job site or street address. Customizable ping rates allow you to configure the device to your needs.

Automatically compile inventory and dormancy reports

Gain complete visibility into the locations of your assets, and eliminate the need for manual inventory checks. The AG51 syncs with Samsara's cloud-based dashboard to provide automated inventory reporting and a visual map of all of your assets in one place.

Identify unused assets to optimize inventory pools

Quickly identify assets that are unused and dormant for long periods of time. Underutilized assets can be moved to higher demand sites or consolidated to maximize resources.

Long-lasting replaceable batteries for unpowered use

The included batteries last up to 4 years with 2 check-ins per day. This enables long-term monitoring of assets leased out or left on job sites for years at a time.

Installs in less than 5 minutes

With a weatherproof and water-resistant design (IP69K rating), the AG51 can be installed on any mobile asset in just minutes using either durable, high strength tape or anti-theft screws.

Download Datasheet

Data Inputs

Location (1)
High-precision GPS with internal antenna
LTEM module for low-power efficiency

Internet Connectivity

CELLULAR (1)
Continuous 4G LTE-M cellular connectivity, with 3G fallback where LTE-M coverage is unavailable
Operating area: United States, Canada, Mexico, United Kingdom, European Union
LTE-M: Quad band 2/4/5/12. 3G: dual band 2/5
DATA SECURITY (1)
All Internet connectivity secured via HTTPS with TLS encryption

Data Transmission and Storage

UPLOADS DATA TWICE PER DAY (1)
Streams sensor data to the Samsara Cloud 2x per day.
BUILT-IN STORAGE FOR OFFLINE LOGGING (1)
Built-in flash memory provides offline storage and logs data when Internet connectivity is unavailable.

Power

POWER EFFICIENCY (1)
Low power consumption: 90uW (sleep) to 900 mW (peak) power draw.
Lithium batteries enable up to 4 years of battery-powered operation.

Power

Features
Map-based location tracking
Approximate cell and WiFi based location
Developer APIs
Alerts
Geofence

License

Requires AG51 license. License includes hardware, cloud software, ongoing firmware updates, cellular data connectivity, and support.

Volume purchase and multi-year license term discounts available; contact us for details.
