Vehicle Gateway

Vehicle Gateway

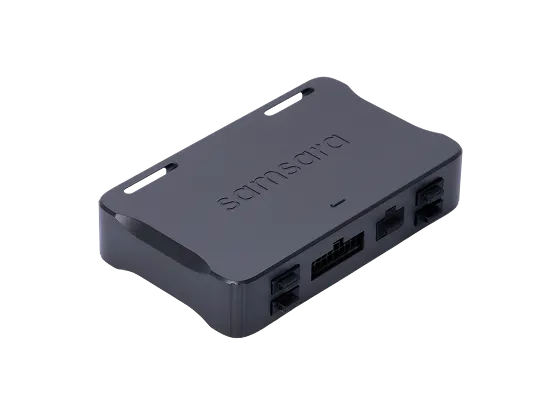

The Vehicle Gateway provides live GPS tracking, FMCSA-registered ELD capabilities, engine diagnostics, a built-in WiFi hotspot, driver workflows, advanced analytics, and more. With real-time fleet visibility, customizable reports, and easy-to-use management tools, fleets can keep drivers productive, lower operating costs, and easily manage compliance.

Precise GPS tracking with real-time visibility

Samsara's advanced GPS technology simultaneously reads from multiple independent satellite systems, providing precise, real-time location even in challenging geographical environments.

Provides complete visibility over vehicles, drivers, and operations

The Vehicle Gateway integrates information from a variety of built-in and accessory sensors, providing a comprehensive and intuitive view of your fleet. The Vehicle Gateway monitors engine diagnostics, fuel efficiency, driver productivity, and safety. The Vehicle Gateway is ideal for refrigerated fleets, supporting wireless temperature monitoring, and specialized fleets with visibility into power takeoff, lift arm, plows, sweepers, fluid tanks, gas pressure, and more.

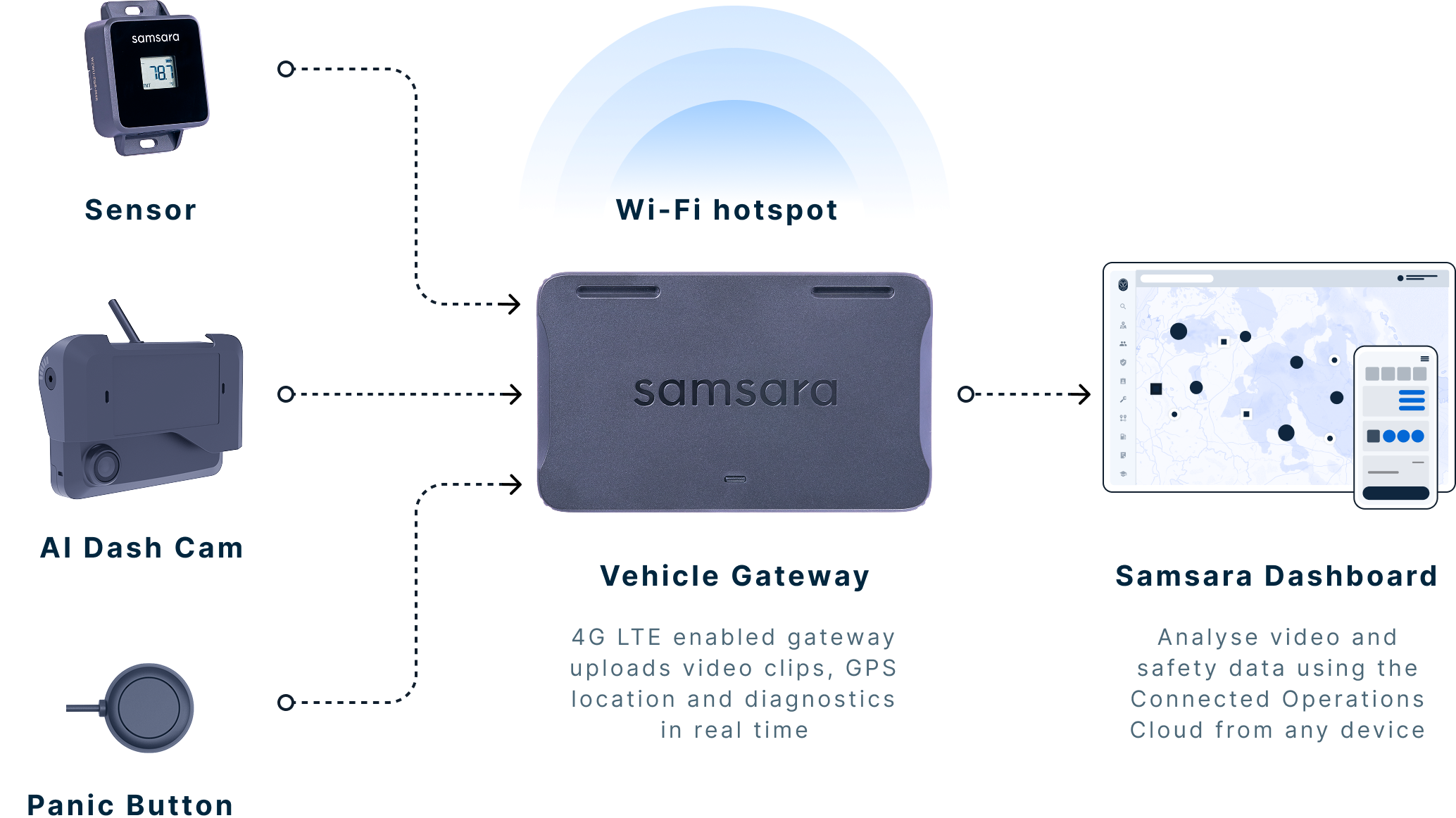

A platform for location, ELD, dash cams, and more

The Vehicle Gateway is the hub of Samsara's complete solution, enabling operators to implement ELD-ready hours of service logging, deploy Internet-connected dash cams for improved safety, connect wireless sensors to monitor reefers and cargo, and more.

High-speed 4G LTE Cellular Connectivity

The Vehicle Gateway offers a 10x speed advantage over 3G devices, providing a high-speed data platform ideal for mobile apps, dash cameras, and HD video to increase productivity and enable new in-cab software tools. A built-in WiFi hotspot enables in-cab WiFi connectivity for tablets, laptops, and mobile devices.

Secure and easy to install with y-splitting cables and tamper alerts

With a flexible and intuitive mounting system, smart diagnostics connectors, and internal antennas, the Vehicle Gateway installs in most vehicles in just a few minutes. Discreet mounting options minimize risk of tampering, and a built-in, rechargeable battery enables the Vehicle Gateway to send a wireless alert in the event that it is unplugged from the vehicle.

Rugged, flexible device works in virtually any vehicle

The Vehicle Gateway is equally at home in cars and light trucks, tractor trailers, and heavy duty, industrial, or specialized vehicles. With a rugged design tested for vibration, shock, moisture, and extreme temperatures, the Vehicle Gateway is built for reliable performance under the rigors of industrial fleet operations.

Part of a complete, business-relevant solution

The Vehicle Gateway is part of Samsara's complete solution to provide visibility into vehicles, drivers, cargo, mobile assets, energy, and industrial processes. With the Vehicle Gateway, operators can improve driver safety, analyze route performance, simplify reporting and compliance, increase driver productivity, and lower operating cost.

Download DatasheetCE Declaration of Conformity

Data Inputs

CAN BUS / DIAGNOSTICS INTERFACE
High Speed CAN, J1939, J1708, RP-1226, Single Wire CAN, Secondary High Speed CAN
LOCATION
Advanced positioning system simultaneously reads from multiple independent satellite systems including GPS and GLONASS global navigation satellite systems.
Internal antenna for discreet installation. Optional external antenna available for non-standard mounting configurations.
Industry leading -162 dBm sensitivity with 1 second time-to-fix (hot start).
WIRELESS SENSORS
Compatible with EM-series wireless temperature monitors, Driver ID tokens, and IM-series industrial input modules. Automatic discovery (plug and play).
AUXILIARY INPUTS
5 × digital inputs monitor specialized equipment (e.g. snow plow up/down, power takeoff on/off, etc.). Maximum voltage 30V, Vil 1.2V, Vih 2V.
1 × digital output, reserved for future use via software update

Wireless Connectivity

CELLULAR DATA
4G LTE cellular connectivity.
North America Cellular Band Coverage: LTE: 2,4,5,12,13
Europe Cellular Band Coverage: LTE: 1,3,7,8,20; 3G: 1,8; 2G: GSM 900/1800
WIFI HOTSPOT
Integrated WiFi hotspot (802.11g/n, 2.4Ghz) provides high-speed WiFi data to in-cab tablets, smartphones, laptops, and other WiFi-compatible devices.
DATA SECURITY
All Internet connectivity secured via SSL with 256-bit AES encryption (military-grade).
OFFLINE STORAGE
Built-in flash memory logs data when Internet connectivity is unavailable.

Power

POWER CONSUMPTION
High Power: Approx. 2W
Moderate Power: Approx. 0.8W
Low Power: Approx. 0.2W
INPUT POWER
12V and 24V vehicles via diagnostic port connection or direct wiring harness.

Enclosure

DIMENSIONS
118mm x 71mm x 23mm (4.65in x 2.8in x 0.9in)
WEIGHT
173g
OPERATING TEMPERATURE
-40° to 85°C

Software Features

SAMSARA CLOUD
Connects to Samsara Cloud to provide real-time location visibility, dispatch, reporting, and alerts
SAMSARA DRIVER APP
ELD-ready Hours of Service logging when used with Samsara Driver App

Accessories

NFC Card ReaderNear-field communication reader that securely logs ridership data
Panic ButtonImmediately send alerts and video footage to managers with one push
Auxiliary Input HubAdd up to 8 additional digital input lines to the Vehicle Gateway
Engine ImmobilizerRemotely disable or enable the ignition of any vehicle
Privacy ButtonDisable GPS tracking when conducting personal activities

License

Requires VG license. License includes hardware, cloud software, cables, ongoing firmware updates, cellular data connectivity, and support.

Volume purchase and multi-year license term discounts available, contact us for details.
