Powered Asset Gateway

Powered Asset Gateway

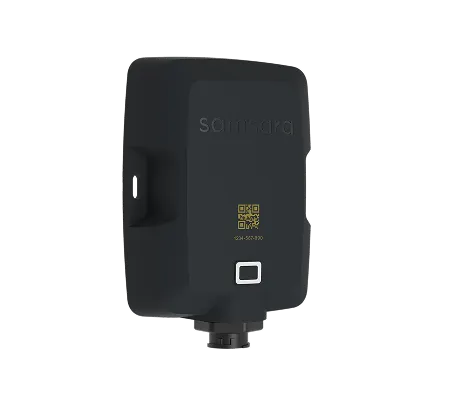

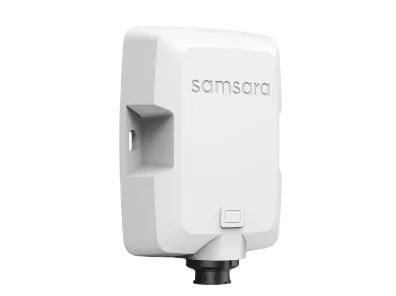

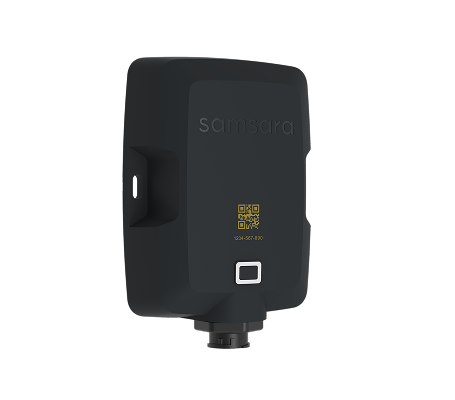

The Powered Asset Gateway is ideal for tracking and monitoring powered assets as well as dry-van and flatbed trailers. It features a waterproof and ruggedized enclosure and multiple built-in power options. This product enables improved operating efficiency, asset theft recovery, and streamlined regulatory compliance. It is part of Samsara’s Connected Operations Cloud, enabling you to capture data that helps you run your operations more efficiently, safely, and sustainably

Real-time visibility into mobile assets

Samsara provides location visibility for both powered and unpowered assets, enabling operators to instantly find trailers in the yard, streamline utilization, and improve customer service.

Measure and optimize utilization

By collecting and analyzing inventory and usage data, Samsara identifies underutilized trailers and equipment that could be moved to higher-demand locations or jobs with more revenue potential.

Detect & recover lost or stolen assets

Samsara provides easy-to-use geofences and alerts, enabling operators to instantly detect and respond to theft or unauthorized use. Samsara's real-time location tracking enables law enforcement to quickly recover stolen assets.

Long-lasting backup battery

When charged by a power source, the Powered Asset Gateway maintains battery charge indefinitely. When not receiving power, the product can continue to operate on its reserve lithium-ion battery lasting over 12 months at a default 2 check-ins per day.

Plug and play install takes minutes

The Powered Asset Gateway can be installed on most trailers and assets in just minutes and with an industry-leading ruggedized enclosure (IP67 and IP69k rating), it is ready for withstanding the harshest of conditions like high-pressure power washing.

Download Datasheet

Data Inputs

LOCATION
High-precision GPS with internal antenna for discreet installation

Internet Connectivity

CELLULAR
LTE Cat M1
Operating area: United States, Canada, Mexico, UK, EU (countries with LTE-M)
DATA SECURITY
All Internet connectivity secured via HTTPS with TLS encryption

Data Transmission and Storage

BUILT-IN STORAGE FOR OFFLINE LOGGING
Built-in flash memory logs data when Internet connectivity is unavailable

Power

POWER EFFICIENCY

Low power consumption: 200 uW (sleep) to 5,000 mW (peak) power draw; normal operation at 200mW.

9-31V DC input power, with simple installation connecting to seven-way connector.

Internal lithium-ion battery enables over 12 months of battery back up operation at 2 check-ins per day when fully charged. Battery charges automatically via seven-way.

Enclosure

Materials
UV-stabilized polycarbonate
Dimensions
124 x 81 x 35 mm
Weight
192 g
IP rating
IP67 (weatherproof and water-resistant up to 1m submerged) IP69k (highest grade resistance to high pressure and high-temperature washdown)

Samsara Cloud Software Features

Features
Map-based location tracking with live updates
Real-time alerts (SMS, email)
Operational reports: Utilization, inventory, dormancy, detention, billing, equipment, trip history, and time on site
Developer APIs
Geofence

Cables & Accessories

Cables
CBL-AG-BPWR Powered cable for trailer 7-way connection and powered equipment with 1 digital input
CBL-AG-BEQP Enhanced powered equipment cable with 2 digital inputs
CBL-AG-BABS Basic powered asset cable for simplified install with ABS light indication
CBL-AG-B12V AG52 12V power supply cable that connects to ACC-2A12-W1 wall wart cable
CBL-AG-AEDP European cable harness, dry van power only
CBL-AG-AEPC European cable harness, dry van 7-way connector

Door MonitorMonitor swing and roll-up trailer doors
CARGO MONITORDetect the absence or presence of cargo
ENVIRONMENTAL MONITORMonitor temperature, comes with an optional probe for extended range (separate license required)

License

Requires AG Powered license. License includes hardware, cloud software, cables, ongoing firmware updates, cellular data connectivity, and support.

Volume purchase and multi-year license term discounts available; contact us for details.
